Cantera reactors¶
-
- These are also available in your cantera installation
- For example, at /usr/local/cantera/lib/python3.7/site-packages/cantera/examples/reactors
CSTR Example¶
In [2]:
import cantera as ct
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
In [14]:
P = 101325
Tin = 300 # inlet state
Xin = 'CH4:1, O2:2, N2:7.52'
T0 = 2000.0 # initial reactor state
X0 = 'O2:0.21, N2:0.79'
Tair = 300 # exhaust/surrounding state
Xair = 'O2:1, N2:3.76'
Vcstr = 1 # volume (m3)
mdotIn = 1.767 # kg/2
nt = 100 # number of time steps
trun = 0.6 # run time
L_is_isoT = False # true if isothermal, false if adiabatic
#-------------------------------------------------------------------
gasI = ct.Solution('gri30.yaml') # in
gasI.TPX = Tin, P, Xin
gasE = ct.Solution('gri30.yaml') # exhaust
gasE.TPX = Tair, P, Xair
gas0 = ct.Solution('gri30.yaml') # initial reactor
gas0.TPX = T0, P, X0
inlet = ct.Reservoir(gasI)
exhaust = ct.Reservoir(gasE)
cstr = ct.IdealGasReactor(gas0, energy='off') if L_is_isoT else ct.IdealGasReactor(gas0)
cstr.volume = Vcstr
mfcGas = ct.MassFlowController(inlet, cstr, mdot=mdotIn)
valveExhaust = ct.Valve(cstr, exhaust, K=1000.0)
rxrNet = ct.ReactorNet([cstr])
pressures = P*np.ones(nt)
mdotExhaust = mdotIn*np.ones(nt)
temps = cstr.T*np.ones(nt)
rhos = cstr.thermo.density*np.ones(nt)
y = np.zeros((nt, gasI.n_species))
x = np.zeros((nt, gasI.n_species))
y[0,:] = cstr.Y
#---------- run the reactor
nsteps = nt-1
dt = trun/nsteps
time = 0.0
for i in range(nsteps) :
time = time + dt
rxrNet.advance(time)
temps[i+1] = cstr.thermo.T
pressures[i+1] = cstr.thermo.P
rhos[i+1] = cstr.thermo.density
mdotExhaust[i+1] = valveExhaust.mass_flow_rate
y[i+1,:] = cstr.thermo.Y
x[i+1,:] = cstr.thermo.X
#---------- plot results
times = np.linspace(0,trun,nt)
plt.rc('font', size=14)

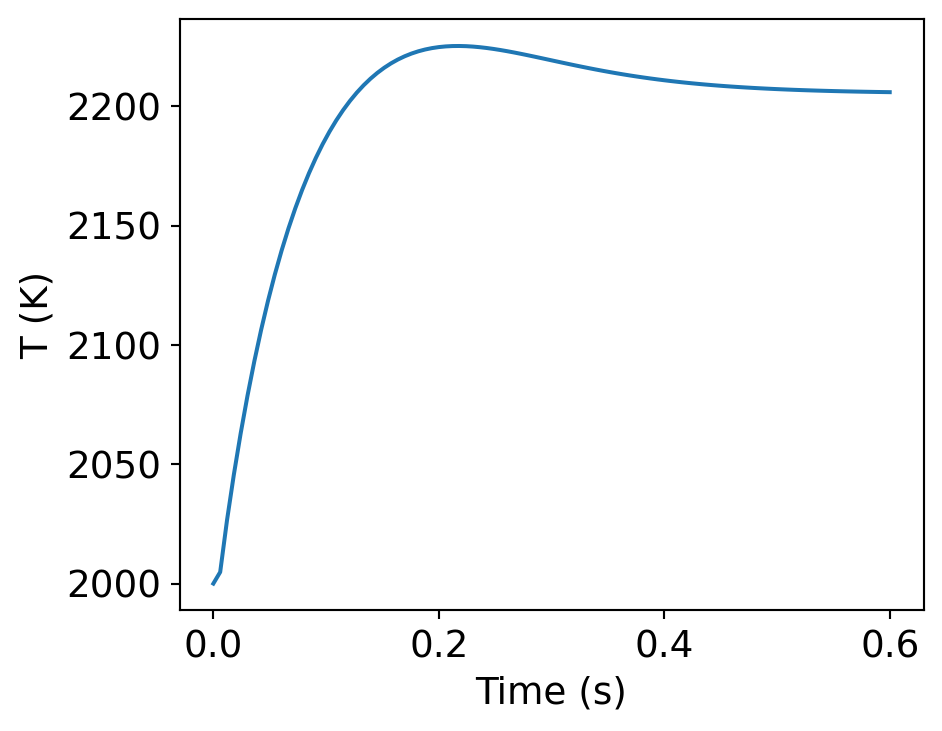

plt.figure(figsize=(5,4))
plt.plot(times, temps, '-')
plt.xlabel('Time (s)')
plt.ylabel('T (K)')

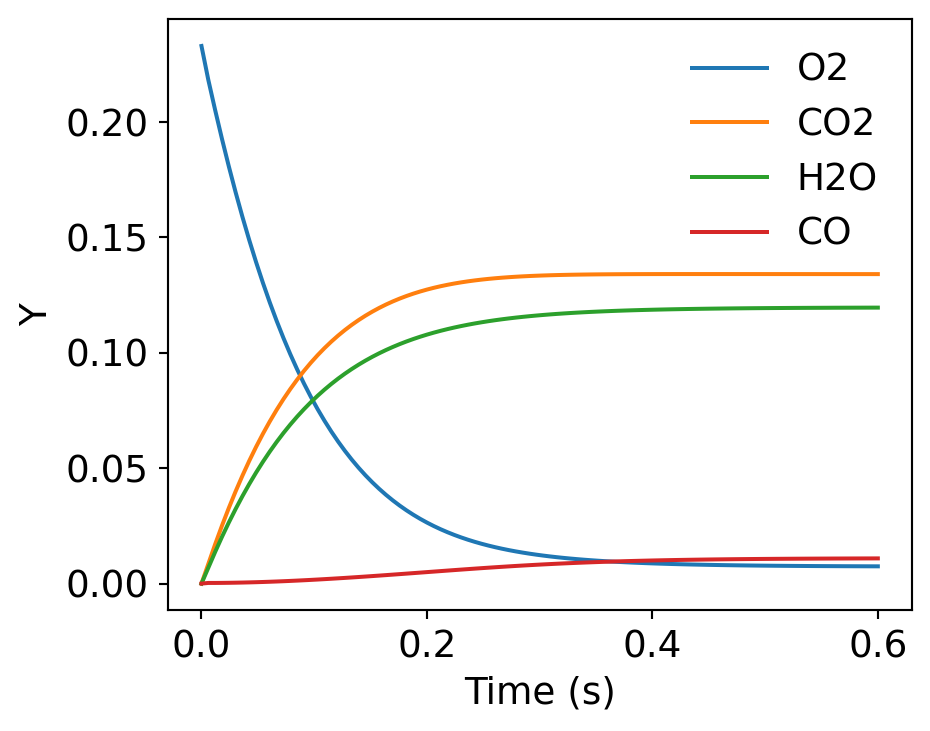

plt.figure(figsize=(5,4))
plt.plot(times,y[:,gasI.species_index("O2")], label="O2")
plt.plot(times,y[:,gasI.species_index("CO2")],label="CO2")
plt.plot(times,y[:,gasI.species_index("H2O")],label="H2O")
plt.plot(times,y[:,gasI.species_index("CO")], label="CO")
plt.xlabel('Time (s)')
plt.ylabel('Y')
plt.legend(frameon=False, loc='upper right');
Examine properties¶
- Python's
dirfunction is convenient to see a list of reactor properties- Try out
dir(cstr)
- Try out
cstr.thermogives access to the underlying thermo object.- For example:
cstr.thermo.species_namesor other properties that we would often access throughgas, as ingas.X.
- For example:
In [10]:
dir(cstr)
# dir(cstr.thermo)
# dir(valveExhaust)
Out[10]:
['T', 'Y', '__class__', '__copy__', '__delattr__', '__dir__', '__doc__', '__eq__', '__format__', '__ge__', '__getattribute__', '__gt__', '__hash__', '__init__', '__init_subclass__', '__le__', '__lt__', '__ne__', '__new__', '__reduce__', '__reduce_ex__', '__repr__', '__setattr__', '__sizeof__', '__str__', '__subclasshook__', '_add_inlet', '_add_outlet', '_add_wall', 'add_sensitivity_reaction', 'add_sensitivity_species_enthalpy', 'chemistry_enabled', 'component_index', 'component_name', 'density', 'energy_enabled', 'get_state', 'inlets', 'insert', 'kinetics', 'mass', 'n_vars', 'name', 'outlets', 'reactor_type', 'set_advance_limit', 'surfaces', 'syncState', 'thermo', 'type', 'volume', 'walls']
