ChEn 433 Coal

Class 14

Coal Rank



Coal Rank

Increasing coal rank…

  1. (Peat): coal precursor; soft organic partly decayed plant matter
  2. Lignite: brown coal; high moisture; low heating value
  3. Subbituminous: dull black; electricicy
  4. Bituminous: high heating value; electricity, steel
  5. Anthracite: hard, brittle, high carbon


Coal composition


1,2 dimethyl chickenwire


Coal composition

Skyline coal (bituminous)

Proximate analysis (as received)

Component wt%
Moisture 9.52
Volatiles 37.83
Fixed Carbon 44.56
Ash 8.10

Ultimate analysis (dry)

Component wt%
Carbon 73.52
Hydrogen 5.19
Nitrogen 1.32
Sulfer 0.58
Oxygen 10.46
Ash 8.95

Higher Heating value = 12407 Btu/lb (dry)

(\(\text{HHV}=\Delta H_\text{comb}=-\Delta H_\text{rxn}\), water in products as liquid)

U.S. Coal Deposits


U.S. Coal Power Plants


US Coal Plants

  • 241 plants in 2019
  • 236 GW installed capacity
  • 23% of US electricity

U.S. plants start dates


88% of coal capacity installed over 30 years ago

China

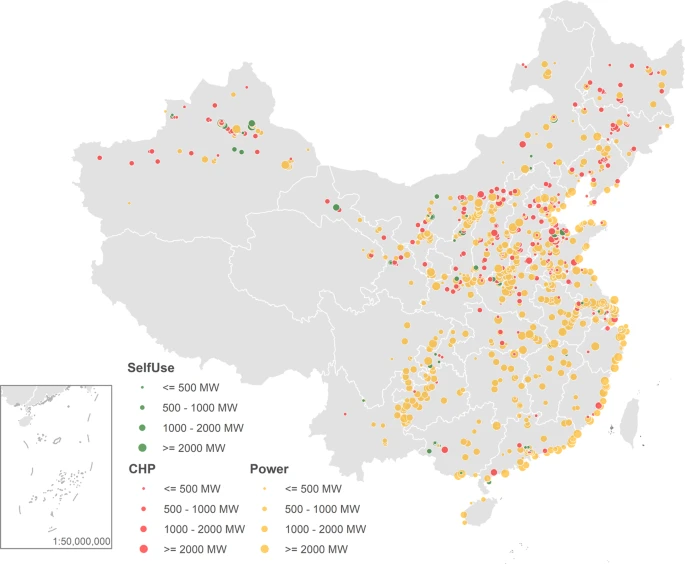

Chinese Coal Plants


Wiki

  • >1000 plants
  • 184 plants under construction in 2020
  • 58% of Chinese energy in 2019
    • 80% in 2010


Coal power plant


Low NOx burner

image   image

Low NOx Combustion Retrofit Options (article)

Steam drum

image image

Furnace types–stoker


  • Smaller size units
  • Crushed coal, not pulverized
  • Variable fuel

Pulverized coal furnaces

PC furnaces


(a) front-wall fired   (b) opposed-wall-fired   (c) corner-fired

Corner fired

image image

Cyclones

image   image

L1500 Turbulent Coal Jet

L1500 Turbulent Coal Jet


L1500 Turbulent Coal Jet

OFC coal flame detail
